Certification : CCS,BV,ABS,GB(EX)
Brand Name : Warom
Model Number : BJK-S/G
Place of Origin : China
Payment Terms : T/T
Packaging Details : carton packing/wooden box package
Application : Widely used for the supervisory control on various marine platforms, chemical tankers, LNG ships and hazardous cargo wharfs
Can reliably work in : severe environment exposed in moisture, vibration or corrosion
Explosive hazardous atmosphere : Zone 1, Zone 2, Zone 21, Zone 22
Executive standards | GB,IEC,EN |
Explosion-proof mark | Ex d ⅡC T6 Gb / Ex tD A21 IP68 T80℃ |
Protection rating | IP68 |
Corrosion-proof grade | WF2 |
Material | 304 stainless steel or 316L |
Horizontal rotation | 30°(horizontally) by manual adjustment |
Vertical rotation | ±60° by manual adjustment |
Installation methods | Fixing brackets, base, upright posts |
Input voltage | 12V DC / 24V AC / 220V AC |
Ambient temperature | -40℃~+60℃ |
Through head | The standard configuration specification is 2×M20×1.5, and other specifications if used shall be specified |
Cable OD | Suitable for Φ9mm~Φ16mm cables |
Weight | 5kg |

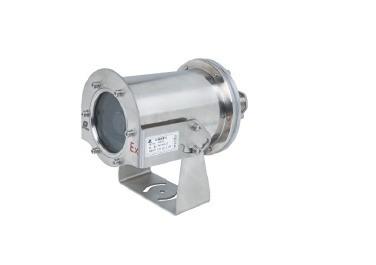

BJK-S/G Explosion-proof Camera
(Download here:BJK-S/G Explosion-proof Camera.pdf)
Contact us for more information:
Address : No. 555, Baoqian Road, Jiading District, Shanghai, China
Zip Code: 201808
Tel: +86 021 39977076 /+86 021 39972657
Fax: +86 021 39977077
E-mail: gmb@warom.com
![]() |
BJK-S/G Explosion-proof Camera Images |
